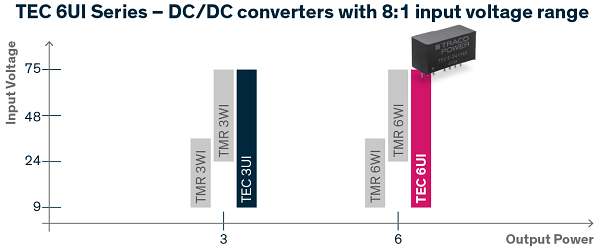

The TEC 6UI series comprises isolated DC/DC converters featuring an ultra-wide input range. These next-generation converters are engineered to seamlessly replace and serve as an alternative to existing 2:1 and 4:1 input converter series – delivering uncompromised performance and cost-efficiency. With an input voltage range of 9 to 75 VDC, the TEC 6UI supports a broad spectrum of standard bus voltages, reducing the need for multiple model variants within a single application.
Each model includes built-in protections such as short circuit protection, overcurrent limitation, undervoltage lockout, and remote-control functionality. The converters are certified for an operating temperature range of –40°C to +80°C in accordance with IEC/EN/UL 62368-1 and are capable of functioning at altitudes up to 5000 meters.

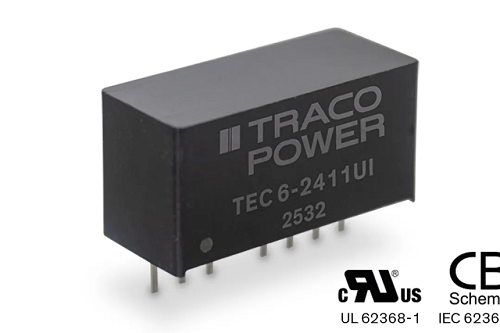

Housed in a compact SIP-8 plastic case, the TEC 6UI series is well-suited for space-constrained applications. Available in both single and dual output configurations, these converters are ideal for a wide range of industrial applications.

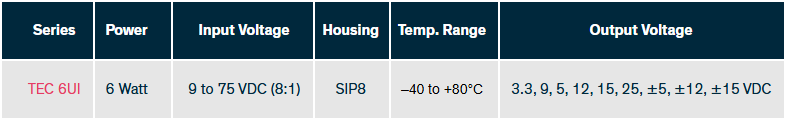

TEC 6UI Series Features:
- Compact SIP-8 plastic case
- Ultra-wide input range: 9 VDC to 75 VDC
- Certification according to IEC/EN/ES 62368-1
- Approved operating temperature from –40°C to +80°C
- I/O isolation 1600VDC
- Operating up to 5000m altitude
- Short circuit protection and over current limitation
- Under voltage lockout
- Remote ON/OFF
- 3-year product warranty
For more information visit www.tracopower.com/tec6ui.
