- Industry-leading DC resistance of 5 mΩ and a rated current of 10 A achieved
- Usable in high-temperature environments up to +155 °C, the upper guaranteed temperature limit
- Compliant with AEC-Q200 (automotive products)

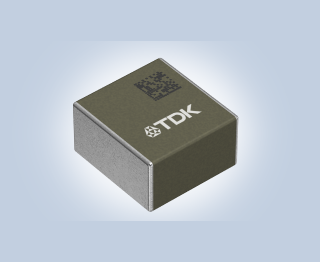

TDK Corporation announced that it expanded the BCL3520FT series of small power inductors for automotive power circuits (3.3 x 3.5 x 2.0 mm – L x W x T). Mass production of the product series began in December 2025.
Inductors like the BCL3520FT series are used in efficient power supply circuits of ECUs. High efficiency is necessary to reduce power losses because ever more ECUs for ADAS applications are being deployed in cars. This drives the development of low-loss, high-functional power inductors. These components must be compact, as they need to be mounted in the limited space of the ECU. High reliability is also crucial, as they must operate in harsh, high-temperature environments.
Thanks to TDK’s proprietary metallic magnetic materials and structural designs, the BCL3520FT series achieves industry-leading electrical properties for 0.47-μH inductors with such small dimensions. Regarding DC resistance, a low 5 mΩ (typ.) resistance has been achieved, approximately 15% lower than equivalent products available on the market. Using a flat wire instead of a standard round wire reduces heat generation and power loss. Therefore, the components achieve a rated current (Isat) of 10 A, approximately 28% higher than other products, facilitating these products’ uses for a range of applications. These high-reliability inductors can be used in high-temperature environments up to +155 °C, the upper guaranteed temperature limit.
TDK will continue to contribute to society with its broad lineup of low-loss, high-efficiency power inductors for many different high-function applications aimed at achieving autonomous driving through the development of products that meet market needs.
Glossary
- ADAS: Advanced Driver-Assistance Systems assist drivers in driving and parking functions
- ECU: Electronic Control Unit, electrical circuits that control vehicle systems
Main applications
- Power supply circuits for automotive applications (e.g., ADAS, xEV, automotive camera modules)
Main features and benefits
- Industry-leading DC resistance of 5 mΩ and rated current of 10 A
- Usable in high-temperature environments with an upper guaranteed temperature limit of +155 °C
- Compliant with AEC-Q200 (automotive products)

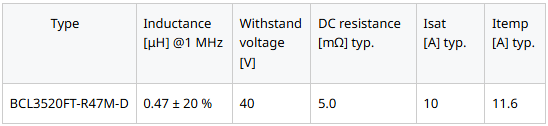

Isat: Current value based on inductance variation (30 % lower than the initial L value)
Itemp: Current value based on temperature increase (temperature increase of 40 K by self-heating)
For more information, visit www.tdk.com.
