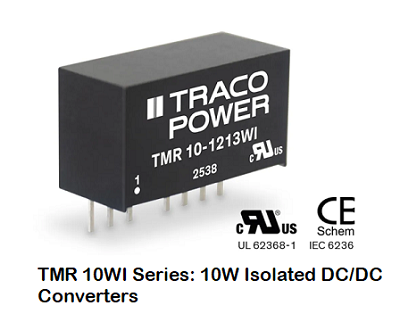

The TMR 10WI series consists of isolated DC/DC converters designed for versatility, offering a wide input range from 4.5 VDC to 75 VDC. Thanks to their high efficiency of up to 89%, these converters achieve a compact SIP-8 form factor, without compromising thermal performance.
Each unit is equipped with comprehensive protection features, including short-circuit protection, overcurrent limitation, undervoltage lockout, and remote on/off control. Certified to IEC/EN/UL 62368-1 standards, the series supports an operating temperature range of –40°C to +70°C and is rated for altitudes up to 5000 meters.
Housed in a robust SIP-8 plastic case, the TMR 10WI series is available in both single and dual output configurations, making it a reliable choice for a wide variety of industrial applications.

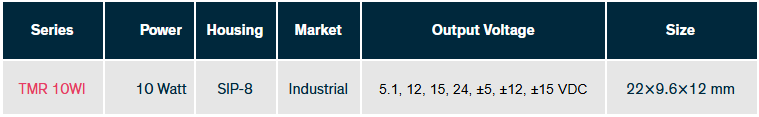

Key Features of the TMR 10WI Series:
- Compact SIP-8 plastic case
- Wide input range: 4.5–18, 9–36 and 8–75 VDC
- Certification according to IEC/EN/ES 62368-1
- Approved operating temperature from –40°C to +70°C
- I/O isolation 1500 VDC
- Operating up to 5000 m altitude
- Short circuit protection and over current limitation
- Under voltage lockout
- Remote ON/OFF
- 3-year product warranty
For more information, visit https://www.tracopower.com/tmr10wi.
