RF Digital’s RFD77402 Simblee ToF Sensor Module, Now at Mouser

Offers Distance Mapping and 3D Imaging for IoT

Mouser Electronics, Inc., the authorized global distributor with the newest semiconductors and electronic components, is now stocking the RFD77402 Simblee Internet of Things (IoT) 3D time-of-flight (ToF) sensor module from RF Digital. The RFD77402 module is founded on the Simblee platform, which offers an end-to-end development environment for a variety of IoT applications from white goods and consumer and industrial measurement devices to gesture recognition and robotics.

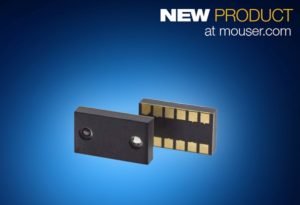

The RF Digital RFD77402 Simblee IoT 3D ToF sensor module, available from Mouser Electronics, integrates an embedded light sensor, vertical cavity surface emitting laser (VCSEL) driver, microcontroller and onboard memory to provide highly accurate distance mapping and 3D imaging technology. The module uses the eye-safe laser to measure the amount of time it takes to bounce off a given target. The high-repeatability laser features an 850nm wavelength light source and offers an overall sensing distance from 100 mm up to 2 meters. Designed specifically for applications requiring accurate distance mapping and 3D imaging using the sensor module’s ToF capabilities, the RFD77402 offers a 10Hz maximum refresh rate and an I2C interface for device control and data transfer.

RF Digital’s RFD77402 Simblee IoT 3D ToF sensor module is available in an ultra-small 4.8 mm × 2.8 mm × 1.0 mm SMD package and is suited for a broad array of IoT sensor applications that require accurate distance measurement, user detection, obstacle detection and avoidance, gesture detection and recognition, directional movement and volume or height control. For development in the Simblee ecosystem, the RFD77402 is supported by two development tools: the RFD77306 IoT 3D ToF shield and the RFD77804 Simblee Wireless IoT 3D ToF sensor kit.

To learn more about the RFD77402 sensor module and associated development tools, visit https://www.mouser.com/new/rfdigital/rf-digital-rfd77402-sensor/.
