Smallest Sensor Device Supporting LPWA Communication for no more Battery replacement

107

The spread of IoT systems has progressed in recent years, and it is predicted that by 2020, several tens of billions of IoT devices will be connected to the cloud through networks. In IoT systems, information collected from multiple sensors installed in the field, need to be transmitted to and analyzed on the cloud, and LPWA has been gaining attention as a wireless technology that can directly transmit data to the cloud with low power consumption across a wide area. From a convenience and cost standpoint there are high hopes for miniaturization, which not only meets the LPWA standards, while utilizing solar cells that eliminate the need for replacement.

Issues

Fujitsu Laboratories has previously developed power control technology using miniature circuits that can transmit data over short distances wirelessly using Bluetooth Low Energy (BLE). This technology realizes sensor devices that support BLE without the need to exchange batteries, providing power with solar cells, and reliably activating a wireless circuit by monitoring and adjusting the balance between power generation and consumption.

Sensor devices using this previous technology, however, could not support LPWA. That’s because the time required for transmission with LPWA is significantly longer than with BLE. LPWA transmits small amounts of data slowly in order to ensure signal quality over long distances. In effect, this means that a single transmission can require significant power usage of up to about 1,500 times of BLE.

About the Newly Developed Technology

Now, Fujitsu Laboratories has developed new power control technology to ensure transmission power while minimizing circuit size. This technology’s advantages are as follows.

Figure 2: Circuit diagram for the newly developed sensor deviceFigure 2: Circuit diagram for the newly developed sensor device

1. Power control technology that permits power variations with temperature

Fujitsu Laboratories has developed power control technology that can control the timing of LPWA signal transmissions in real time, based on temperature data collected from a temperature sensor. With this technology signal transmissions are only carried out at the time when the activation voltage, which varies with temperature, is maximized in order to prevent it from falling below the minimum operational voltage for LPWA module (Figure 3). By using power efficiently in this way, it is possible to tolerate variation in power consumed by the wireless circuit or power generated by solar cells due to temperature. This eliminates the need for the excess energy storage elements that were previously necessary to respond to power fluctuations, enabling miniaturization of the sensor device with the smallest power storage elements required.

Figure 3: Chart of operational timingFigure 3: Chart of operational timing

2. Power monitoring technology that reliably activates the temperature sensor

In order for the power control technology to operate reliably, the device must be able to continually and reliably activate the temperature sensor with a small amount of power. To resolve this challenge, Fujitsu Laboratories has developed power monitoring technology that analyzes voltage changes in power source, and accurately judges whether or not sufficient power has been stored to operate the temperature sensor. This technology can prevent unnecessary shutdowns of the temperature sensor by using the minimum amount of power based on the temperature.

Figure 4: Power monitoring technology that can reliably activate the temperature sensorFigure 4: Power monitoring technology that can reliably activate the temperature sensor

Effects

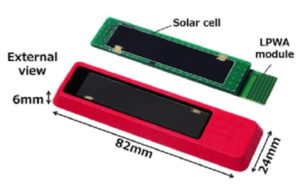

This technology was implemented using Sigfox, an LPWA standard, creating the world’s smallest sensor device (82x24x6 mm) supporting LPWA communications without the need to replace batteries. Fujitsu Laboratories verified that temperature and humidity data could be transmitted once every ten minutes, over seven days directly to a base station about 7 km away, in an environment with illumination of 4,000 lux. Fujitsu Laboratories also verified that the data could be visualized through the Fujitsu Cloud Service K5 IoT Platform, Fujitsu Limited’s IoT data utilization platform service, which has received Sigfox Ready Program for IoT PaaS certification as an IoT platform that connects to the Sigfox cloud (Figure 5).

This means that sensor data can easily be acquired in the cloud just by setting sensor devices, even in places where it is difficult to secure power or install power cables. This will enable maintenance-free installation and management of IoT systems, accelerating the process of digitalization in the field.

Figure 5: Data flow when using the newly developed LPWA sensor device via the cloudFigure 5: Data flow when using the newly developed LPWA sensor device via the cloud

Future Plans

Fujitsu Laboratories will continue to conduct field trials aimed at the real-world use of these sensor devices, incorporating this technology into the Fujitsu Cloud Service K5 IoT Platform and Fujitsu Frontech Limited’s sensor solutions as connected devices, with the goal of commercialization in fiscal 2018. Furthermore, we will continue to develop technologies to miniaturize sensor devices.
