Dracena, Data Processing Architecture :Swiftly provides & improves real-time services for IoT data, connected cars, devices

With the recent development of IoT technologies, data has begun to be gathered from all sorts of objects and collected in datacenters, and it is expected that by analyzing and utilizing this, a variety of new services will be created. In the case of connected cars, for example, it is thought that by collecting, analyzing, and utilizing data from automobiles in real time, it will be possible to relieve congestion, assist drivers, and improve the safety of autonomous driving (figure 1).

IoT-Data-Processing-Architecture

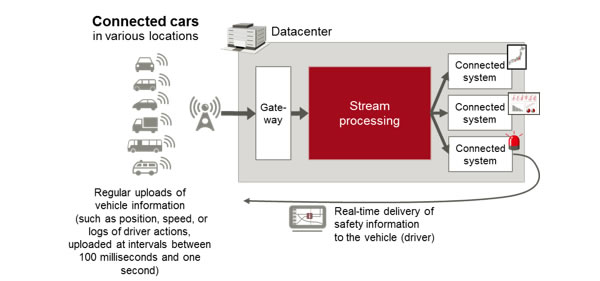

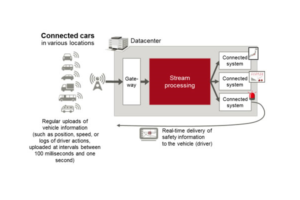

Figure 1: Real-time services via the collection, analysis, and utilization of data from connected cars

Issues

In order to rapidly process data, such as speed and location, that are generated on a second-to-second basis by huge numbers of cars in motion, the most effective method is to construct a system that uses stream processing to process data in parallel, such as on a car-by-car basis. In order to add to or change the processing program according to service additions and improvements, the current method involves preparing two systems of the same scale in advance, using one for operations, making changes to the other one, and then quickly swapping them out. This method required both systems to be temporarily stopped, however, while the data, such as the speed or position of a car, held in the memory of the system in use, was copied over to the revised system. This made it difficult to produce services that required truly continuous operations, such as the real-time transmission of warnings to connected cars.

In addition, because new processing programs were obtained from the database, known as a repository, congestion resulted with the numerous queries from large volumes of processing units, delaying overall processing.

Details of the Newly Developed Technology

Now, Fujitsu Laboratories has developed Dracena, an architecture that can modify the processing programs of a system while it is operating, without halting operations.

With this technology, when changing or adding data processing contents, this architecture distributes the new data processing program as a message, in the same way data is distributed, to each individual processing unit, called an object, such as the processing unit for each car. This eliminates the impact on overall processing speed due to the concentration of queries on the repository. Moreover, by separating intra-object message reception processing and data processing in this architecture, the system is able to add in the new data processing program without stopping the message reception processing or the existing data processing, and then have all objects change over to the new data processing program with the same timing. This has enabled Fujitsu Laboratories to create a stream processing architecture in which the data processing program can be added to or changed without stopping, in order to continue parallelized processing without holding back the flow of huge volumes of data for copying (figure 2).

IoT_Data-Processing

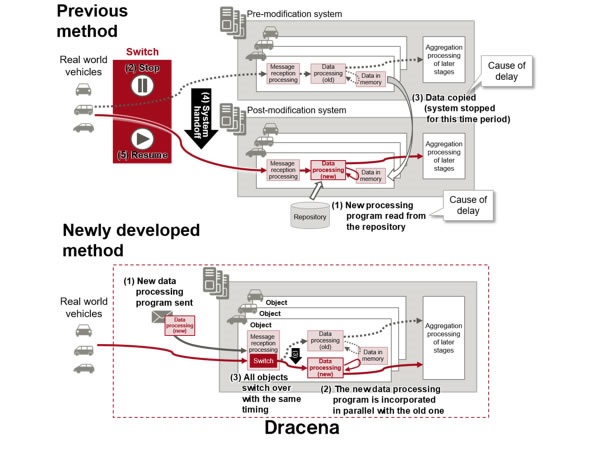

Figure 2: Differences between the existing technology and Dracena’s non-disruptive update technology

Effects

The results of a simulated evaluation confirmed that, in a use case in which a few dozen bytes of data are transmitted once each second from one million vehicles, this architecture was capable of continuously providing services when adding a sudden-braking detection service in a situation where the system was already providing a service to detect excessive driving times, with an average delay increase volume of five milliseconds or less. This architecture will enable the rapid provision of real-time services that require uninterrupted operation and that can respond to problems occurring in society, including providing driving assistance for connected cars, supporting energy-saving usage of appliances, providing in-home health and safety monitoring, and providing travel guidance for tourists using smartphones.

Moreover, this architecture enables users to adopt a build method in which they first build a base system aimed at simple analysis and utilization, and then gradually add new services. Using this technology in the case of automobiles, for example, it would be possible to begin with a system that reads signs of drunk driving based on steering wheel operation data, and then add new services layer by layer, such as combining this with map data to detect crosswinds at tunnel exits, or combining it with image data to detect the presence of illegally parked cars, which can be expected to improve the efficiency of service development.

Future Plans

Fujitsu aims to commercialize this technology during fiscal 2018 as a constituent element of the Mobility IoT Platform offered by Fujitsu Limited. In addition, Fujitsu is looking to extend this technology beyond the mobility field to business areas that require real-time services based on data that is continually generated at a high frequency, such as providing directions to people during events or in disaster situations.
