Vishay Intertechnology Releases Commercial Version of the Popular Automotive Grade IHLE Integrated E-Shield Inductor

Vishay Intertechnology Releases Commercial Version of the Popular Automotive Grade IHLE Integrated E-Shield Inductor available in 2525, 3232, and 4040 Case Sizes, Devices Provide -20 dB Electric Field Reduction at 1 cm.

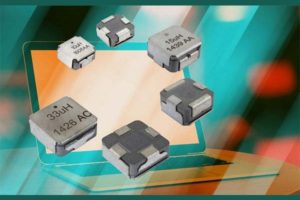

MALVERN, Pa. — Jan. 16, 2017 — Vishay Intertechnology, Inc. (NYSE: VSH) today announced a commercial version of its popular Automotive Grade IHLE series of low profile, high current inductors featuring integrated e-shields for EMI reduction. Available in the 2525, 3232, and 4040 case sizes, the Vishay Dale IHLE-2525CD-51, IHLE-3232DD-51, and IHLE-4040DD-51 contain the electric field associated with EMI in a tin-plated copper integrated shield, providing up to -20 dB of electric field reduction at 1 cm (above the center of the inductor) when the integrated shield is connected to ground. By eliminating the need for expensive board-level Faraday shielding to lower EMI, the devices reduce costs and save board space.

FEATURES

• High temperature, up to 155 °C

• Integrated E-Shield for maximum EMI reduction (1)

• Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up the SRF (see Standard Electrical Specifications table).

• Integrated e-field shield eliminates need for separate shielding

• 20 dB e-field reduction at 1 cm – Measured vertically from top center of device

• Lowest DCR/μH, in this package size

• Handles high transient current spikes without saturation

• Coplanarity of the 4 terminals  100 μm

APPLICATIONS

• PDA / notebook / desktop / server applications

• High current POL converters

• Low profile, high current power supplies

• Battery powered devices

• DC/DC converters in distributed power systems

• DC/DC converter for Field Programmable Gate Array (FPGA)

• Telecom infrastructure Note

• Dot and shaded terminations indicate the coil pin.
Featuring high temperature operation to +155 °C and coplanarity of their four terminals within ≤ 100 µm, the inductors released today are optimized for energy storage in DC/DC converters and high current filtering. Applications include notebooks, desktop PCs, and servers; high current point-of-load converters; graphics cards; DC/DC converters for distributed power systems and FPGAs; and telecom infrastructure.

Device Specification Table:

Part number IHLE-2525CD-51 IHLE-3232DD-51 IHLE-4040DD-51
Inductance @ 100 kHz (μH) 0.47 to 22 0.22 to 33 0.47 to 47
DCR typ. @ 25 °C (mΩ) 3.87 to 163.0 1.68 to 149.0 1.55 to 167
Heat rating current typ. (A) 2.8 to 22.0 3.1 to 36.0 2.5 to 30.0
Saturation current typ. (A) 2.2 to 14.0 3.2 to 32.0 4.5 to 28.5

For more information visit  :-http://www.vishay.com/
