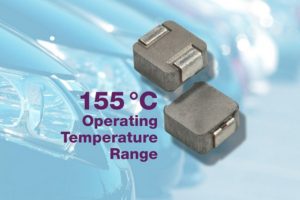

MALVERN, Pa. — March 9, 2017 — Vishay Intertechnology, Inc. (NYSE: VSH) today introduced a new AEC-Q200-qualified IHLP low profile, high current inductor in the 1616 case size that combines a high operating temperature to +155 °C with a low profile of 2 mm to save space in automotive applications.
The Vishay Dale IHLP-1616BZ-5A is optimized for energy storage in DC/DC converters up to 2 MHz. It also provides excellent attenuation of noise in high current filtering applications up to the SRF of the inductor. With a continuous operating temperature of +155 °C, it can be used in under-the-hood applications including engine control units for noise suppression, filtering and DC/DC conversion, LED lighting, radar, LIDAR, optical and other sensors, along with entertainment and navigation systems.
The device released today features high efficiency with typical DCR from 4.0 mΩ to 102.0 mΩ and a wide range of inductance values from 0.10 µH to 4.7 µH. The IHLP-1616BZ-5A provides rated current to 19.0 A and handles high transient current spikes without saturation.
Packaged in a 100 % lead (Pb)-free shielded, composite construction that reduces buzz to ultra low levels, the inductor offers high resistance to thermal shock, moisture, and mechanical shock. The IHLP-1616BZ-5A is RoHS-compliant, halogen-free, and Vishay Green.
Device Specification Table:
| Case size | 1616 |
| Profile (mm) | 2.0 |
| Inductance range (mH) | 0.10 to 4.7 |
| DCR typ. (mΩ) | 4.0 to 102.0 |
| DCR max. (mΩ) | 4.2 to 110.0 |
| Heat rating current (A) | 3.2 to 17.3 |
| Saturation current (A) | 1.8 to 19.0 |
| SRF typ. (MHz) | 28 to 320 |
FEATURES
• High temperature, up to 155 °C
• Shielded construction
• Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up the SRF (see Standard Electrical Specifications table).
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• AEC-Q200 qualified
APPLICATIONS
• Engine and transmission control units
• Diesel injection drivers
• DC/DC converters for entertainment/navigation systems
• Noise suppression for motors – Windshield wipers, power seats, power mirrors, heating and ventilation blowers, HID lighting
• LED drivers
Samples and production quantities of the new inductor are available now, with lead times of 10 weeks for large orders.
For more information visit: www.vishay.com.
