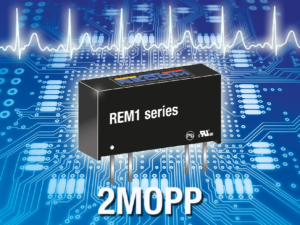

RECOM one-of-a-kind converter REM1 with 2 MOPP

RECOM has developed a new fully medically-certified DC/DC converter, which is the first in its class to provide 2MOPP with 250VAC working voltage in a SIP7 package. This compact design offers engineers more freedom to develop their PCB layout, knowing that they will comply with the stringent regulations for medical certifications.

It is certainly a challenge to design high performance, space-saving medical devices, while still complying with the latest medical safety and EMC regulations. The use of pre-certified modules reduces the risk of EMC/safety certification failures and saves time for expensive re-designs. RECOM’s new REM1 series complements the existing REM 3W, 6W and 10W medical DC/DC converters by offering a 1W solution in an astonishingly compact SIP7 package. This state-of-the-art converter features reinforced isolation of 5.2kVAC/1 minute and is certified 2MOPP with 250VAC working voltage.

Available with 3.3, 5, 12, 15 or 24V inputs and 3.3, 5 or 12V outputs, the REM1 is a versatile solution with up to 85% efficiency and operates in an ambient temperature range from -40°C up to +90°C. This converter meets Class B EMC by using a simple external LC filter and is IEC60601-1-2 (4th Ed.) medically EMC certified. It is also fully certified to IEC/EN/ANSI/AAMI 60601, third edition safety standards, with CB report and comes with a 5 year warranty.

Samples are now available at all authorized distributors.

For more information please visit www.recom-power.com
