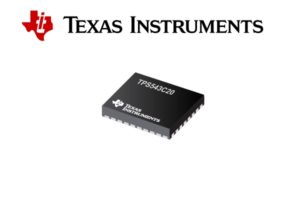

Texas Instruments (TI), introduced the industry’s first 16-V input, 40-Asynchronous DC/DC buck converter with an internally compensated advanced-current-mode (ACM) control topology supporting frequency synchronization. TI’s TPS543C20 SWIFT converter provides enhanced efficiency by integrating its latest generation of low resistance high- and low-side MOSFETs into a thermally efficient small-footprint package. Designers can stack two converters side by side to drive loads up to 80 A for processors in space-constrained and power-dense applications in various markets, including wired and wireless communications, enterprise and cloud computing, and data storage systems.
The unique internally compensated ACM control topology with fast transient response maintains stability over a wide range of input and output voltages. What makes ACM different is that it is an emulated peak-current-mode control topology that internally generates a ramp with the ability to dynamically adjust for stability over a wide range of operating switching frequencies. This provides the best of both traditional fixed frequency for low noise operation and constant on-time (COT) control for fast transient without external compensation. Read the blog post, “Lightning-fast internally compensated ACM topology – what can it do for you?” and the “Control-Mode Quick Reference Guide” to understand the difference between TI’s various control modes.
TPS543C20 key features and benefits
- Provides greater than 90 percent efficiency at a 40-A peak-load current.
- Maintains 0.5 percent reference-voltage accuracy over temperature and full differential remote-voltage sensing to meet the voltage-accuracy requirements of deep submicron processors.
- Provides up to 80A at point-of-load when stacking two converters.
- Offers very high power density and the PowerStack quad flat no-leads (QFN) package enables easy heat sinking from the single ground pad.
WEBENCH tools from Texas Instruments
The WEBENCH Designer and Architect component libraries include more than 40,000 components from 120 manufacturers. TI’s distribution partners update price and availability hourly for design optimization and production planning. Offered in eight languages, users can compare complete system designs and make supply-chain decisions in minutes. Start a cost-free design with the TPS543C20in TI’s WEBENCH design environment.
Find out more about TI’s power portfolio
- Get more information on TI’s SWIFT portfolio of converters and all of TI’s power management products.
- See all of the power designs in TI’s reference design library.
- Search for solutions, get help and share knowledge in the TI E2E Community Power Management forum.
