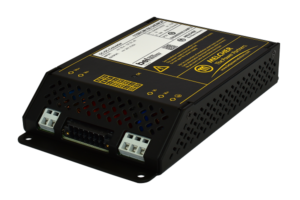

Bel Power Solutions and Protection, a Bel group company and premier global manufacturer of power management devices, announces the RCM150 (150 W) and RCM300 (300 W) chassis-mount DC-DC converters, which are designed for railway applications where compactness and high reliability are required. These new RCM Series products are fully isolated and highly efficient over a broad operating range of input and output voltages. In addition, their compact size and ease of installation make them uniquely suited for various rolling stock applications, such as cab radios, HVAC systems, train control, passenger information systems, toilet systems, illumination and many others.
RCM Series are fully compliant to international railway standards EN 50155, EN 50121-3-2,
EN45545-2 and North American AREMA requirements. In addition, the RCM Series is safety approved to the latest edition of IEC/EN/UL 60950-1. Nominal on board battery voltages from 24 V to 110 V are covered by two input ranges and converted into a fully regulated and isolated single output voltage of 12 V or 24 V. The converters can operate in a convection cooled environment at temperatures from -40° up to 85°C. All PCBs are conformal coated and protected against humidity and pollution which occurs during typical lifecycles of +20 years of rolling stock equipment.
The converters are fully protected against over-load, -voltage, -temperature, under voltage, no-load and short circuit with automatic recovery. Additional features include integrated hold-up capacitors for 10ms interruption, ORing FET and passive current share for parallel and redundant operation, as well as remote voltage adjust, enable and fail signal. These innovations make the RCM 150 W and 300 W DC-DC converters ideal for a broad range of applications in the global railway market.
For more detailed product information, visit the product page.
