New 175°C AEC-Q101 MOSFETs in miniature leadless packages from Nexperia enable automated inspection

Replace larger SO8 and SOT223 devices

42

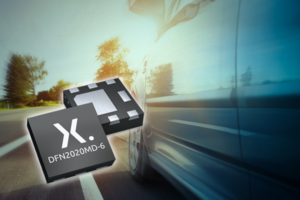

Nexperia announced the industry’s first AEC-Q101-qualified MOSFETs that are both rated for use at up to 175 °C and are available in the AOI-compatible DFN2020 package (DFN = Discrete Flat No leads). More, the new devices measure just 2 mm x 2 mm, much smaller and lighter than SOT223 and SO8-packages yet with comparable electrical and thermal performance.

Many leadless packages cannot be inspected using AOI techniques, so Nexperia pioneered the development of the DFN2020 package with side-wettable flanks (SWF), enabling Automatic optical inspection (AOI) – a critical automotive industry requirement – to be employed. Packages with SWF are now a proven, accepted solution.

The new automotive-qualified parts extend Nexperia’s low and medium power MOSFET portfolio. Six 40 V and 60 V devices are available with the higher temperature rating and automotive approval, each with low RDS(on) of between 20 mΩ and 40 mΩ.

More information on the new DFN2020 MOSFETs (BUKxxx) including product specs and datasheets is available athttps://efficiencywins.nexperia.com/efficient-products/DFN2020-Automotive-MOSFETs.html
