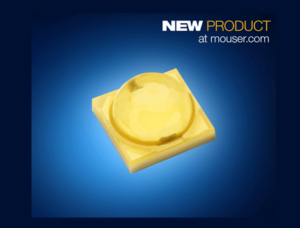

Mouser Electronics is now stocking the LUXEON V2 LEDs from Lumileds. Based on a 2 mm² chip scale package (CSP) die, the compact, 3.5 mm × 3.5 mm LEDs deliver high efficacy at high drive current, making them an ideal choice for a variety of heavy-duty lighting applications, including outdoor, architectural, stadium, street, and high-bay and low-bay fixtures.
The Lumileds LUXEON V2 high-power LEDs are designed to deliver a Lambertian radiation pattern with 99 percent of the light directed forward. The LEDs deliver 160 lumens per watt and 10 percent more flux at 1 A than similar LEDs. The devices’ high drive current capability of up to 2.4 A meets the needs of applications requiring maximum flux output.
The LUXEON V2 LEDs are available in color temperatures ranging from 4000 K to 6500 K and a minimum CRI of 70. The LEDs are housed in a 3535 ceramic package with three-stripe footprint and are designed to match the radiation pattern of Lumileds’ LUXEON TX Series to enable drop-in compatibility and accelerate time to market. The LEDs operate over a case temperature range of minus 40 to 135 degrees C and a low thermal resistance substrate of 3.0 K/W, simplifying the thermal design of indoor and outdoor fixtures.
To learn more, visit www.mouser.com/lumileds-luxeon-v2-led.
