AHP2356A GNSS Antenna – Mouser Electronics, Inc., the industry’s leading New Product Introduction (NPI) distributor with the widest selection of semiconductors and electronic components, is now stocking the AHP2356A active 2-stage LNA GNSS antenna from Taoglas.

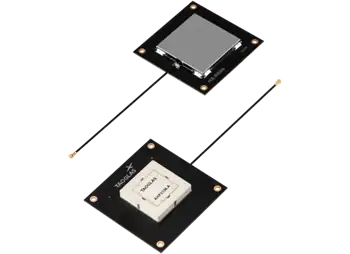

The AHP2356A antenna is a compact, high-performance solution for next-generation precision positioning systems. The 35mm x 35mm x 6mm active patch element incorporates a 2-stage low-noise amplifier that delivers enhanced signal clarity, a low noise figure, and strong out-of-band rejection, enabling stable performance in all RF environments. Supporting GPS/QZSS (L1/L2), Galileo (E5b), GLONASS (G1), and BeiDou (B1I), the AHP2356A provides robust multiband reception across major global navigation constellations. Designed and tuned on a 70 × 70 mm2 ground plane, the antenna maintains excellent radiation patterns, optimized gain, and reliable operation in space-constrained designs. The AHP2356A antenna includes a 100mm 1.37mm coaxial cable with an I-PEX MHF® I connector.
AHP2356A antenna is ideal for applications that require precise positioning, such as smart agriculture, asset tracking, navigation systems, autonomous vehicles and robotics, and surveying.
