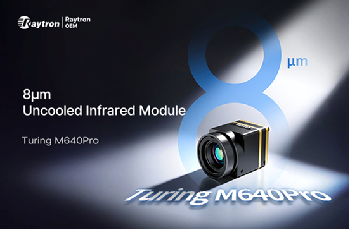

Raytron OEM has officially unveiled the Turing M640Pro, an ultra-miniature uncooled Long-Wave Infrared thermal camera module.
Engineered for next-generation compact platforms, this module brings high-resolution thermal vision to commercial drones, micro-gimbals, head-mounted displays, and portable handheld devices. By integrating a 640×512 resolution uncooled detector, advanced 8 μm pixel pitch technology, and ultra-low power architecture, the Turing M640Pro sets a new benchmark for SWaP optimization. It empowers system integrators to embed advanced thermal capabilities into the most space- and power-constrained environments.
＜3.5g Ultra-Compact Thermal Core
With a footprint of only 13 mm × 13 mm and a weight of less than 3.5 grams, the Turing M640Pro enables high-performance thermal imaging integration in extremely compact platforms.
This ultra-miniature design allows OEM manufacturers to integrate high-performance thermal imaging into lightweight platforms while maintaining:
- Payload Efficiency: Minimal weight impact for maximum drone payload capacity.
- Mechanical Flexibility: Seamless integration into tight spaces and micro-gimbals.
- Extended Endurance: Reduces structural mass to help optimize system-level battery life.
640×512 Resolution with 8μm Pixel Pitch
Raytron OEM’s advanced 640 × 512 uncooled LWIR detector technology, featuring cutting-edge 8 μm pixel pitch architecture:
- Higher Spatial Sampling: Delivers exceptional resolution and pixel density within a highly compact detector format.
- Miniaturized Optics: Allows system integrators to achieve long-range, detailed thermal performance using smaller, lighter optical assemblies.
- Proprietary Image Algorithms: Driven by Raytron’s advanced image processing, helping deliver clear and stable thermal imagery in dynamic operating environments.
≤0.5W Low-Power Thermal Imaging Performance
Designed for battery-powered and energy-constrained platforms, the Turing M640Pro operates with power consumption lower than 0.5W.
This ultra-low power architecture helps system integrators reduce overall energy consumption and optimize thermal management in compact intelligent devices:
- Reduced Payload Power Consumption: Minimizes the thermal module’s power demand in commercal drone and other mobile platforms.
- Improved System Energy Efficiency: Enables more efficient operation for handheld and portable thermal imaging devices.
Flexible Integration with Optics and SDK Support
To address diverse industry requirements, Raytron OEM offers a wide selection of lightweight infrared lenses. With Field of View (FOV) options ranging from a 100° wide-angle to a 10° narrow-angle, the core is customizable for:
- Commercial Drones: Search and Rescue (SAR), power line inspection, and agricultural mapping.
- Security Monitoring: 24/7 border protection and critical infrastructure monitoring.

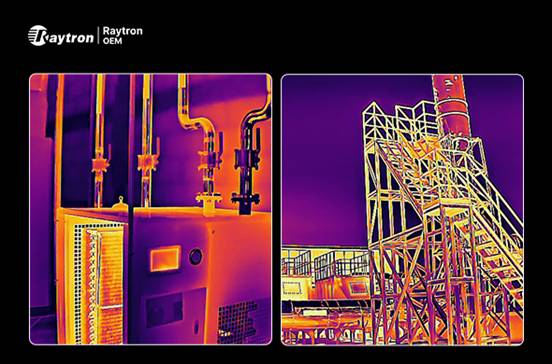

- Industrial Automation: Predictive maintenance, electrical hot-spot detection, and machine vision.
- Portable Systems: Compact outdoor thermography and professional handheld tools.
Developer-Friendly Integration:
To streamline your engineering cycle, Raytron OEM provides a comprehensive Software Development Kit (SDK) supporting cross-platform software development and system integration.The SDK enables rapid prototyping, simplified software integration, and faster development of customized thermal imaging solutions.
